Fix External Cladding to Steel Framing

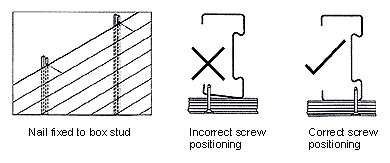

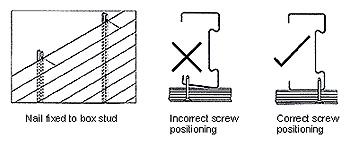

External claddings such as CSR Weathertex, Hardies Hardiplank or similar products can be nailed or screwed directly into the studs.

Cladding Planks

Fibre Cement and Hardboard planks can be fixed to Boxed or Open Stud systems with #8-16x35mm self-embedding head screws.

Cladding Sheets

Fibre Cement and Hardboard sheets can be fixed to Boxed or Open Stud systems with #8-16x20mm self embedding head screws.

Steel Panels

Steel cladding profiles should be fixed in accordance with the manufacturer's specifications. Bracket and clips, where required, should be fixed using #10-16x16mm hex head screws or #10-16x16mm wafer head screws where the fasteners head fouls the panel.

Note:

Any CCA treated claddings must not come into direct contact with steel frames because of corrosion problems. Isolate such cladding with an approved building membrane. Any lead flashings must be isolated from the steel frame.
