Install LYSAGHT EASYCLAD® cladding

This page contains basic instructions for the installation of LYSAGHT EASYCLAD® cladding. For more information see Install LYSAGHT® Steel Roofing & Walling

Fastener without insulation for LYSAGHT EASYCLAD® 2PF300
Steel Supports Up to 0.75 mm thick	Self-drilling tapping screw with hex. washer-head 10-16x16 (M4.8-16x16)
Steel Supports 0.75 mm to 3 mm thick	Self-drilling tapping screw with hex. washer-head 10-16x16 (M4.8-16x16)
Timber Supports	Type 17 screws with hex. washer-head. Softwood: 10-12x30 (M4.8-12x30) Hardwood: 10-12x20 (M4.8-12x20)

Installation - Concealed Fastener Through Edge of Panel

LYSAGHT EASYCLAD® can be attached to the supporting frame with the panels either running vertical or horizontal.

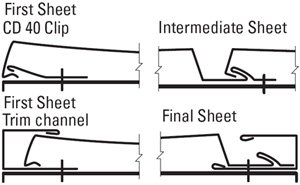

The first panel is held in place by a starting clip or by a trim channel fitted over the panel. The underlapping side of this panel is then fastened to each support adjacent to the return lip. The next panel is then overlapped and hooked over the return lip, with the underlapping side being fastened as previous. The laying of subsequent sheets follows this procedure.
