LYSAGHT EASYCLAD®
LYSAGHT EASYCLAD® profiles
Product Description and Features
The LYSAGHT EASYCLAD® system features stylish, clean line panels with a wide range of trim sections and accessories catering for various design situations. Two standard products are available with a variation on these available in the Northern Territory.
- Profile similar to weather board for interior and exterior use
- Easy 'secret' fixing
- Wide range of trim sections and accessories are available
- High impact resistance due to profile strength
- Panels can run vertically or horizontally.
Warnings
- Not recommended for roofing
- LYSAGHT EASYCLAD® is manufactured in New South Wales - please check with your local sales centre for availability in other states
- LYSAGHT EASYCLAD® EH 300 is manufactured in the Northern Territory - please check with your local sales centre for availability in other states
- Lead and copper are not compatible with ZINCALUME® steel or COLORBOND® steel
- Ensure selection of suitable materials for environmental conditions for maximum durability
- Read full details on Guidelines for using COLORBOND® steel & ZINCALUME® steel.
Product Details

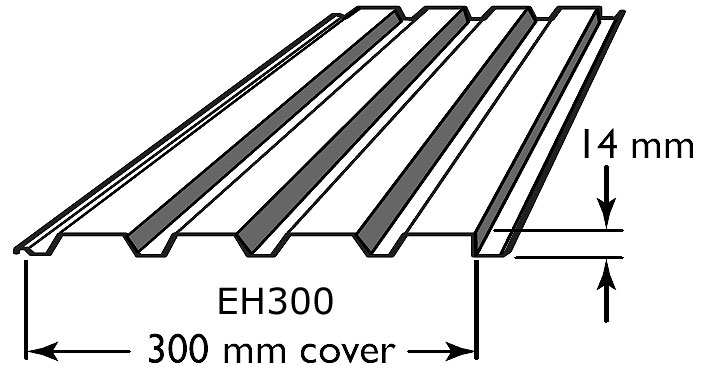

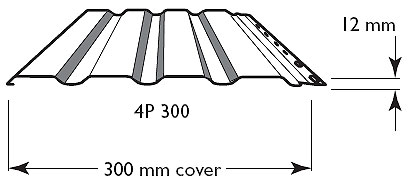

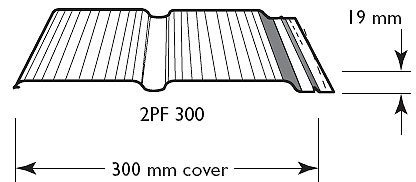

Schematic
 |
|
|  |
EH300 is available in Northern Territory Only
Physical Properties
| Mass and Yield for Easyclad 4P300 & 2PF300 | ||||
|---|---|---|---|---|
| BMT (mm) | kg/m | kg/m2 | m2/t | |
| ZINCALUME® steel | 0.42 | 1.35 | 4.51 | 222 |
| COLORBOND® steel | 0.42 | 1.38 | 4.59 | 218 |
Easyclad EH300
BMT:0.55
Mass (COLORBOND® steel): 5.8kg>m2
Specification
- ZINCALUME® steel complying with AS1397-2001 G550, AZ150 (550MPa minimum yield stress, 150g/m2 minimum coating mass).
or - COLORBOND® prepainted steel complies with AS/NZS 2728:1997
Tolerances
Length Tolerance: +0mm, -15mm
Width Tolerance: +/-3mm
Sheets are supplied custom cut.
Colour Range
LYSAGHT® products are normally available in the standard range of COLORBOND® steel colours. View the standard colour range for:
COLORBOND® steel or
COLORBOND® Ultra and COLORBOND® Stainless steel or
Colour Chart for COLORBOND® Metallic steel
Please check with your local supplier regarding specific colour availability for individual products.
Spanning Tables
| Maximum Wall Support Spacings for LYSAGHT EASYCLAD® 4P300 & 2PF300 | ||
|---|---|---|
| Type of Span | Product | |
| 4P300 | 2PF300 | |
| End Span Internal Span |
1500 1500 |
1500 1500 |
- For walls: the data are based on pressures (see wind pressures table)
- Table data are based on supports of 1mm BMT
Capacity & Load Tables
The maximum recommended support spacings are based on testing in accordance with AS 1562.1 - 1992, and AS 4040.2 - 1992**
Wall spans consider resistance to wind pressure only.
The pressure considered is based on buildings up to 10m high in Region B, Terrain category 3, Ms=0.85, Mi=1.0, Mt=1.0 with the following assumptions made:
Cpi=+0.20, Cpe=-0.65, kl=2.0 for single spans, kl=1.5 for internal spans.
These spacings may vary by serviceability and strength limit states for particular projects.
The pressure capacities for serviceability are based on a deflection limit of: (span/120) + (P/30), where P is the maximum fastener pitch.
The pressure capacities for Strength have been determined by testing the cladding to failure (ultimate capacity). These pressures are applicable when the cladding is fixed to a minimum of 1.0 mm material (G550).
For strength pressures when fixed to material <1.0 mm Contact Us
| EASYCLAD® 2PF 300 Wind Capacities (kPa) - Limit State Format | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| BMT (mm) | Type of Span | Limit State | Span(mm) | |||||||
| 450 | 600 | 750 | 900 | 1050 | 1200 | 1350 | 1500 | |||
| 0.42 | End | Serviceability | 1.39 | 1.36 | 1.33 | 1.28 | 1.23 | 1.17 | 1.10 | 1.04 |
| Strength* | 4.85 | 3.85 | 3.10 | 2.50 | 2.20 | 2.00 | 1.85 | 1.80 | ||
| Internal | Serviceability | 1.28 | 1.26 | 1.23 | 1.20 | 1.15 | 1.11 | 1.05 | 1.01 | |
| Strength* | 4.85 | 3.85 | 3.10 | 2.50 | 2.20 | 2.00 | 1.85 | 1.80 | ||
| EASYCLAD® 4P 300 Wind Capacities (kPa) - Limit State Format | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| BMT (mm) | Type of Span | Limit State | Span (mm) | |||||||
| 450 | 600 | 750 | 900 | 1050 | 1200 | 1350 | 1500 | |||
| 0.42 | End | Serviceability | 1.43 | 1.42 | 1.41 | 1.40 | 1.32 | 1.22 | 1.10 | 0.98 |
| Strength* | 7.70 | 5.80 | 4.30 | 3.20 | 2.65 | 2.30 | 2.10 | 1.95 | ||
| Internal | Serviceability | 1.21 | 1.19 | 1.18 | 1.17 | 1.16 | 1.16 | 1.15 | 1.15 | |
| Strength* | 7.70 | 5.80 | 4.30 | 3.20 | 2.65 | 2.30 | 2.10 | 1.95 | ||
* A capacity reduction factor of Ø=0.9 has been applied to strength capacities.
Supports must be not less than 1mm BMT.
| This information on LYSAGHT EASYCLAD® is only suitable for use in non-cyclonic areas. A non-cyclonic area is defined as one where a tropical cyclone is unlikely to occur, in accordance with AS1170.2 - 1989, SAA Loading Code, Part 2 Wind Loads.** |
** More information on the relevant Standards can be found at the Standards Australia Website
