LYSAGHT® Half Round Gutter and LYSAGHT® Flat Back Gutter
LYSAGHT® Half Round Gutter
Product Description and Features
The LYSAGHT® Half Round and LYSAGHT® Flat Back style gutters are available only in Far North Queensland, Western Australia and South Australia. See below for size availability.
- The unique curved base on the gutter prevents build-up of water and dirt, allowing the gutter to clean itself with every shower of rain
- LYSAGHT® Half Round gutter is available with external brackets only
- LYSAGHT® Flat Back gutter uses internal brackets only
- Greater water carrying capacity than most other gutters manufactured in the tropics with overflow slots in the design, specifically for the tropics. Available unslotted on request
- Full range of COLORBOND® steel colours available, plus unpainted ZINCALUME® steel
- Range of easy fix accessories and brackets, makes installation easier
Warnings
- Available only in Far North Queensland, Western Australia and South Australia
- It is important that gutters slope towards the outlets (a minimum gutter fall of 1 in 500 is recommended). Without this slope, 'ponding' may occur, reducing the life of your gutter
- When installing gutters, remove any metal particles or debris at the end of the day to prevent staining or corrosion
- Lead and copper are not compatible with ZINCALUME® steel or COLORBOND® steel
- The protective plastic film should be stripped off immediately on installation
- Ensure selection of suitable material for environmental conditions for maximum durability
- Read full details on Guidelines for using COLORBOND® steel & ZINCALUME® steel
Product Details
Size Availability
| Far North Queensland | South Australia | Western Australia |
Half Round Gutter
|
Flat Back Gutter
|

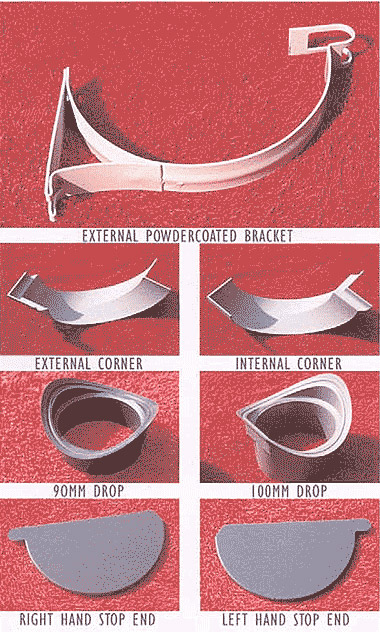

Accessories |

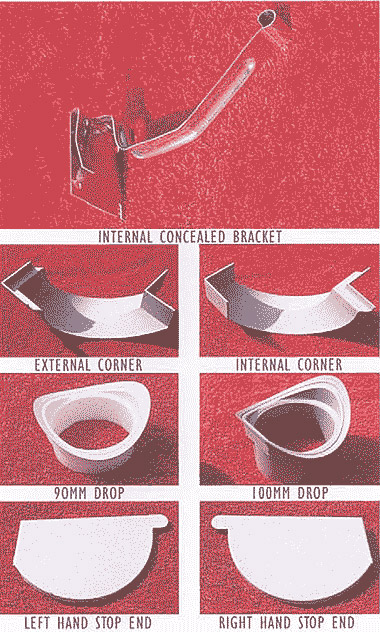

Accessories |
Half Round Gutter
Half round gutter is a simple profile supported by external brackets. Please enquire about availability and brackets. |

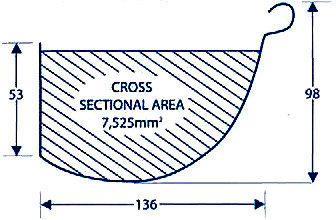

Flat Back Gutter
The unique curved base on LYSAGHT® gutter prevents build up of water and dirt, allowing the gutter to clean itself with every shower of rain. |
Accessories
|
Accessories
|

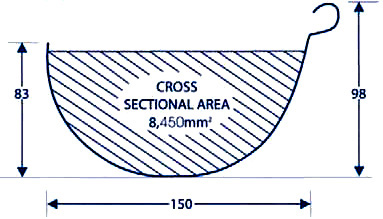

Half Round Gutter
Base metal thickness = 0.55mm. Available in ZINCALUME® steel, COLORBOND® steel, COLORBOND® Stainless steel, copper, aluminium and hard zinc. Maximum length is 8000mm.
Roof Drainage Capacity
View information on Design of Drainage and Gutter Fall Download Using LYSAGHT® Roofing & Walling - Chapter 6 Roof Drainage (407 KB)
Fall
Install gutters with a generous fall to avoid ponding (which reduces gutter life), but the fall should not be so steep as the be obvious to the casual observer. Fall on house guttering is often about 1:250 (12mm in 3000mm), though a steeper fall of 1:100 should give the gutter a longer life.
Downpipe Design
The downpipe size and spacing should be determined in accordance with AS/NZ3500.3.2:1998 National plumbing and drainage: Part 3.2: Stormwater drainage - Acceptable solutions.
