LYSAGHT INTEGRITY® 820
Mannesman Dematic Colby warehouse at Belrose
Product Description and Features
LYSAGHT INTEGRITY® 820 is an exterior cladding profile designed for commercial and industrial applications, where long span and wide cover for fast installation is required.
- Very low roof pitches (to 1 degree) possible. Minimum recommended roof pitch is 2 degrees for Base Metal Thickness (BMT) 0.42mm and 1 degree for BMT 0.48mm
- Fix with ease and speed
- Available in COLORBOND® steel and ZINCALUME® steel
Warnings
- The product information shown here is for LYSAGHT INTEGRITY® 820. It is not applicable for the discontinued LYSAGHT INTEGRITY® 890 product
- LYSAGHT INTEGRITY® 820 has limited availability. Please check with your local BlueScope Lysaght Sales Office for availability in your state
- Ensure selection of suitable material for environmental conditions for maximum durability
- Lead is not compatible with ZINCALUME® steel or COLORBOND® steel
- Read full details on Guidelines for using COLORBOND® steel & ZINCALUME® steel.
Product Details

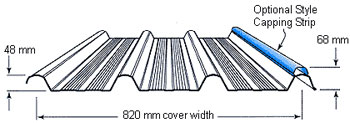

Schematic
Physical Properties
| BMT | Mass | |||
|---|---|---|---|---|
| (mm) | kg/m | kg/m2 | m2/t | |
| ZINCALUME® steel | 0.42 |
3.78 | 4.61 | 217 |
| COLORBOND® steel | 0.42 | 3.84 | 4.69 | 213 |
| ZINCALUME® steel | 0.48 | 4.29 | 5.23 | 191 |
| COLORBOND® steel | 0.48 | 4.36 | 5.31 | 188 |
Specification
- ZINCALUME® steel complying with AS 1397-2001 G550, AZ150 (550 MPa minimum yield stress, 150 g/m2 minimum coating mass)
or - Stainless steel standard grade designation is AISI/ASTM Type 430; UNS No. S43000
The COLORBOND® steel complies with AS/NZS 2728: 1997.
Cladding and Style Capping Strip
G550, AZ150 (550 MPa minimum yield stress, 150 g/m2 minimum coating mass). The base metal thickness is 0.42 or 0.48mm.
Style Capping Strips
If you want the look of concealed-fixing, where the heads of the screws are hidden, you can fit optional Style capping strips. These strips are clipped to cap-type sealing plates instead of standard sealing plates.
Style capping strips can be manufactured in a colour that matches or contrasts with your LYSAGHT INTEGRITY® 820 roof.
Sealing Plates
G300, AZ150. The base metal thickness is 1.0mm.
Tolerances
Length: +0mm, -15mm
Width: +10mm, - 0mm
Lengths
Sheets are supplied custom cut.
Colour Range
LYSAGHT® products are normally available in the standard range of COLORBOND® steel colours. View the standard colour range for:
COLORBOND® steel or
COLORBOND® Ultra and COLORBOND® Stainless steel or
Colour Chart for COLORBOND® Metallic steel
Please check with your local supplier regarding specific colour availability for individual products.
Spanning Tables
The maximum recommended roof support spacings are based on testing in accordance with AS 1562.1-1992, AS 4040.0-1992 and AS 4040.1-1992.
Roof spans consider both resistance to wind pressure and light roof traffic (traffic arising from incidental maintenance).
Wall spans consider resistance to wind pressure only.
The pressure considered is based on buildings up to 10m high in Region B, Terrain Category 3, Ms=0.85, Mi=1.0, Mt=1.0 with the following assumptions made:
Roofs:
Cpi=+0.20, Cpe=-0.90, Kl=2.0 for single and end spans, kl=1.5 for internal spans.
Walls:
Cpi=+0.20, Cpe=-0.65, Kl=2.0 for single and end spans, kl=1.5 for internal spans.
These spacings may vary by the serviceability and strength limit states for particular projects.
| Maximum Recommended Support Spacings (mm) | ||
|---|---|---|
| Type of Span | BMT (mm) | |
| 0.42 | 0.48 | |
| Roofs | ||
| Single Span End Span Internal Span Unstiffened Eaves Overhang Stiffened Eaves Overhang |
2100 2300 2800 150 300 |
2500 2550 3050 200 350 |
| Walls | ||
Single Span |
2600 3400 3600 150 |
2700 3600 3600 200 |
- For roofs: the data are based on foot-traffic loading.
- For walls:the data are based on pressures (see wind pressures table).
- Table data are based on supports of 1mm BMT.
Maximum Roof Lengths for Drainage Measured From Ridge to Gutter (m)<
Penetrations will alter the flow of water on a roof. For assistance in design of roofs with penetrations, please Contact Us
| Peak rainfall intensity mm/hr | Roof slope | |||||
|---|---|---|---|---|---|---|
| 1° | 2° | 3° | 5° | 75° | 10° | |
| 100 |
- |
410 | 480 | 598 | 713 | 820 |
| 150 |
- |
273 | 320 | 399 | 476 | 547 |
| 200 |
- |
205 | 240 | 299 | 257 | 410 |
| 250 |
- |
164 | 192 | 239 | 285 | 328 |
| 300 |
- |
137 | 160 | 199 | 238 | 273 |
| 400 |
- |
102 | 120 | 150 | 178 | 205 |
| 500 |
- |
82 | 96 | 120 | 143 | 164 |
Capacity & Load Tables
INTEGRITY® 820 offers the full benefits of the latest methods for modelling wind pressures. The Wind pressure capacities tables is determined by full scale tests conducted at BlueScope Lysaght's NATA registered testing laboratory, using direct pressure-testing rig.
Testing was conducted in accordance with AS 1562.1-1992, Design and installation of sheet roof and wall cladding-Metal, and AS 4040.2-1992, Resistance to wind pressures for non-cyclonic regions.**
The pressure capacities for serviceability are based on a deflection limit of (span/120) + (maximum fastener pitch/30).
The pressure capacities for the strength have been determined by testing the cladding to failure (ultimate capacity). These pressures are applicable when the cladding is fixed to a minimum of 1.0mm, G550 steel supports.
For material less than 1.0mm thick, please Contact Us.
| LYSAGHT INTEGRITY® 820: Wind Pressures Capacities (kPa) | |||||||
|---|---|---|---|---|---|---|---|
| Base Metal Thickness (mm) | Type of Span | Limit State | Span (mm) | ||||
| 900 | 1200 | 1500 | 1800 | 2100 | |||
| 0.42 | Single | Serviceability | 2.27 | 1.89 | 1.53 | 1.23 | 0.97 |
| Strength* | 7.00 | 5.80 | 4.60 | 3.65 | 2.85 | ||
| End | Serviceability | 2.18 | 1.98 | 1.78 | 1.59 | 1.41 | |
| Strength* | 6.45 | 5.50 | 4.65 | 3.85 | 3.15 | ||
| Internal | Serviceability | 2.45 | 2.23 | 2.02 | 1.82 | 1.64 | |
| Strength* | 8.60 | 7.30 | 6.10 | 5.00 | 4.00 | ||
| 0.48 | Single | Serviceability | 3.71 | 3.04 | 2.42 | 1.91 | 1.52 |
| Strength* | 8.45 | 6.80 | 5.25 | 4.05 | 3.15 | ||
| End | Serviceability | 3.65 | 3.20 | 2.77 | 2.37 | 2.00 | |
| Strength* | 7.70 | 6.55 | 5.45 | 4.40 | 3.55 | ||
| Internal | Serviceability | 3.50 | 3.21 | 2.90 | 2.54 | 2.19 | |
| Strength* | 9.45 | 7.85 | 6.45 | 5.30 | 4.35 | ||
| LYSAGHT INTEGRITY® 820: Wind Pressures Capacities (kPa) | |||||||
|---|---|---|---|---|---|---|---|
| Base Metal Thickness (mm) | Type of Span | Limit State | Span (mm) | ||||
| 2400 | 2700 | 3000 | 3300 | 3600 | |||
| 0.42 | Single | Serviceability | 0.76 | 0.54 | |||
| Strength* | 2.25 | 1.55 | |||||
| End | Serviceability | 1.24 | 1.08 | 0.93 | 0.78 | 0.65 | |
| Strength* | 2.60 | 2.15 | 1.85 | 1.65 | 1.50 | ||
| Internal | Serviceability | 1.48 | 1.32 | 1.17 | 1.03 | 0.89 | |
| Strength* | 3.20 | 2.65 | 2.25 | 1.95 | 1.80 | ||
| 0.48 | Single | Serviceability | 1.21 | 0.89 | 0.51 | ||
| Strength* | 2.50 | 1.80 | 0.95 | ||||
| End | Serviceability | 1.69 | 1.43 | 1.22 | 1.04 | 0.88 | |
| Strength* | 2.85 | 2.35 | 2.10 | 1.95 | 1.85 | ||
| Internal | Serviceability | 1.87 | 1.62 | 1.43 | 1.29 | 1.17 | |
| Strength* | 3.65 | 3.15 | 2.75 | 2.50 | 2.30 | ||
Supports must be not less than 1mm BMT.
| This information is suitable for use only in non-cyclonic areas, that is where a tropical cyclone is unlikely to occur, in accordance with AS 1170.2 - 1989, SAA Loading Code, Part 2, Wind Loads.** |
** More information on the relevant Standards can be found at the Standards Australia Website
