Product Description and Features

LYSAGHT LONGLINE 305® is a strong and durable, concealed-fixed roofing and walling cladding available in long lengths.  It is available in three styles:

  • plain (flat pans);
  • fluted (small creases in the centre of the pan);
  • tapered (pan-width reduced by up to 50% of normal width at one end)

Suitable for roofing with a pitch as low as 1 degree (1 in 50), LYSAGHT LONGLINE 305® has the capacity to be tapered for a sweeping fan effect.

  • Simple concealed fixing
  • Available in ZINCALUME® and a limited range of COLORBOND® steel colours
  • Can be used on roof pitches down as low as 1 degree (1 in 50)

Common Uses of this product

Traditionally used for industrial, commercial and residential applications. Tapering allows use in fanned roof applications.

Warnings

  • For low pitches, all roof supports must be in the one plane to prevent water ponding leading to premature corrosion
  • Manufactured in NSW with limited availability - please check with your local BlueScope Lysaght Sales Office on ph: 13 30 38 for availability of product and colours
  • Ensure selection of suitable material for environmental conditions for maximum durability
  • Lead and copper are not compatible with ZINCALUME® steel or COLORBOND® steel
  • Read full details on Guidelines for using COLORBOND® steel & ZINCALUME® steel.

Product Details

Schematic

LYSAGHT LONGLINE 305® tolerances

Variations: Clips:

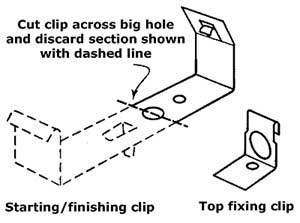

LYSAGHT LONGLINE 305® fixing clip

Physical Properties
Masses
BMT (mm) COLORBOND® steel ZINCALUME® steel
kg/m kg/m2* m2/t* kg/m kg/m2* m2/t*
0.70 2.99 9.81 102 2.96 9.70 103

* For plain flat pans

Tolerances

Length: + 0 mm, - 15 mm
Width:
- standard & fluted: + 4 mm, - 4 mm
- tapered: + 5 mm, - 5 mm

Specification

LONGLINE 305® is made from ZINCALUME® aluminium/zinc alloy-coated steel complying with AS 1397-2001 G300, AZ150 (300 MPa minimum yield stress, 150 g/m2 minimum coating mass). The base metal thickness is 0.70mm. The COLORBOND® prepainted steel complies with AS/NZS 2728: 1997.

Colour Range

LYSAGHT® products are normally available in the standard range of COLORBOND® steel colours. View the standard colour range for:

COLORBOND® steel or
COLORBOND® Ultra and COLORBOND® Stainless steel or
Colour Chart for COLORBOND® Metallic steel

Please check with your local supplier regarding specific colour availability for individual products.

Spanning Tables

The maximum recommended roof support spacings are based on testing in accordance with AS1562.1-1992, AS4040.1-1992, and AS4040.1-1992.

Roof spans consider both resistance to wind pressure and light foot traffic (traffic arising from incidental maintenance).

Wall spans consider resistance to wind pressure only.

The pressure considered is based on buildings up to 10 m high in Region B, Terrain Category 3, Ms=0.85, Mi=1.0, Mt=1.0), with the following assumptions made:

Roofs:

Cpi=+0.20, Cpe=0.90, and K l=2.0 for single and end spans, Kl=1.5 for internal spans.

Walls:

Cpi=+0.20, Cpe=0.65, and K l=2.0 for single and end spans, Kl=1.5 for internal spans.

These spacings may vary by serviceability and strength limit states for particular projects.

Maximum Support Spacings
Type of Span

Support Spacing (mm)

Roofs
Single Span
End Span
Internal Span
Unstiffened Eaves Overhang
Stiffened Eaves Overhang

Walls
End Span
Internal Span
Overhang


1800
2000
2500
150
450


2700
2700
450

  • For roofs the data are based on foot-traffic
  • For walls: the data are based on pressuress (see wind pressure table)
  • Supports must be not less than 1 mm BMT

Capacity & Load Tables

The wind capacities are based on tests conducted at BlueScope Lysaght's NATA registered testing laboratory.

Testing was conducted in accordance with AS1562.1 - 1992, Design and Installation of Sheet Roof and Wall Cladding, and AS4040.2 - 1992, Resistance to Wind Pressure for Non Cyclone Regions.**

The table for wind pressure capacities provides the pressure for Serviceability and Strength Limit State design at various spans and for different span types.

The pressure capacities for Serviceability Limit State are based on a deflection limit of (span/120) + (P/30), where P is the maximum fastener pitch.

The pressure capacities for Strength Limit State have been determined by testing the cladding to failure (ultimate capacity). These capacities are applicable when the cladding is fixed to a minimum of 1.0 mm material (G550).

For material less than 1.0 mm, Contact Us for advice.

LYSAGHT LONGLINE 305® (0.7mm BMT) Wind Pressure Capacities (kPa) - Limit State Format

Type
of
Span

Limit
State
Span (mm)
900 1200 1500 1800 2100 2400 2700
Single Serviceability 2.60 2.10 1.70 1.35 1.10 0.95 0.80
Strength * 3.60 3.25 2.95 2.70 2.40 2.20 1.95
End Serviceability 1.45 1.45 1.40 1.35 1.30 1.25 1.15
Strength * 4.20 3.80 3.45 3.15 2.75 2.45 2.25
Internal Serviceability 2.05 1.90 1.80 1.65 1.55 1.45 1.30
Strength * 5.20 4.90 4.55 4.15 3.65 3.05 2.50
* A capacity reduction factor of 0.9 has been applied to strength capacities
Cyclonic Map This information is suitable for use only in non-cyclonic areas, that is where a tropical cyclone is unlikely to occur, in accordance with AS 1170.2 - 1989, SAA Loading Code, Part 2, Wind Loads.**

** More information on the relevant Standards can be found at the Standards Australia Website

Roof Drainage Capacity

Penetrations will alter the flow of water on a roof. For assistance in design of roofs with penetrations please Contact Us .

Maximum roof lengths for drainage: measured from ridge to gutter (m)
Peak rainfall intensity mm/hr
Roof slope
7.5° 10°
100 219 273 320 398 475 546
150 146 182 213 265 317 364
200 110 136 160 199 237 273
250 88 109 128 159 190 218
300 73 91 107 133 158 182
400 55 68 80 100 119 136
500 44 55 64 80 95 109

Warranty

Perforation warranty of up to 25 years for corrosion to perforation.  Performance warranty of up to 25 years provided the material is fixed to BlueScope Steel specification.
