LYSAGHT NEETASCREEN® Fencing

LYSAGHT NEETASCREEN® fencing is the classic garden fence design

Product Description and Features

The modular LYSAGHT NEETASCREEN® is one of the most versatile and durable fencing systems you can buy. The COLORBOND® pre-painted steel finish with vertical ribbed TRIMWALL® panels provide strength and simple assembly.

Posts, rails and panels are available in a range of COLORBOND® steel colours to allow mix and match combinations
Gate kits also available to match. Note: Gates not available in WA
Total component system means quick and simple installation
Termite and rot resistant
May be stepped or raked on sloping ground

Common Uses of this product

Boundary fences, side fences, partitions, screens, enclosures

Warnings

Should not be used within 1 km of salt marine locations, severe industrial or unusually corrosive environments
Check local council regulations for use in pool areas
Should not be used in the pool splash zone
Garden chemicals should not come in contact with fencing
Bottom rail should be kept clear of debris
Read full details on Guidelines for using COLORBOND® steel & ZINCALUME® steel.

Product Details

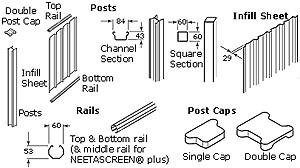

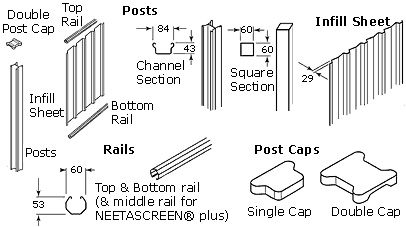

Schematic

Infill Sheet Profile

Colour Range

LYSAGHT® fences are normally available in the standard range of COLORBOND® steel colours. See the Colour Chart COLORBOND® steel for Fencing.

Please check with your local supplier regarding specific colour availability for individual products.

Size Availability

The nominal heights of fences are 1500, 1800 and 2100mm from top rail to bottom of bottom rail. The bottom rail should be nominally 50mm above ground level.

Standard panel widths are 2350mm

Warranty

10 year warranty if installed to specification.

FAQs

Can I get a warranty on a LYSAGHT® fence?
- Yes. We proudly offer a written ten year warranty on our fences, providing they are installed and maintained in accordance with our specifications.
Can LYSAGHT® fencing be used as a retaining wall?
- No. LYSAGHT® fencing has not been designed or tested for use in this application. It is highly likely the soil will cause corrosion of the COLORBOND® steel.
I've heard that COLORBOND® steel should not be immersed in concrete. How will this affect my fence posts?
- Most fences feature galvanised steel posts and COLORBOND® steel infill sheets. Immersing the galvanised steel posts in concrete does not cause any corrosion problems but you should not allow the concrete to contact the rails or infill sheets of the fence. Check with your fencing supplier.
Are LYSAGHT NEETASCREEN® and LYSAGHT MINISCREEN® fences suitable for installation throughout Australia?
- We can confidently say that our fences may be used all over Australia, except for the tropical cyclone regions (defined in AS1170.2 - 1989 SAA Loading Code, Part 2: Wind Loads). Installation methods will vary slightly, depending on your wind region, terrain category and soil type.

  For cyclonic regions see:
  LYSAGHT® Cyclonic Fencing - Far North Queensland
  Or
  LYSAGHT® Cyclonic Fencing - Western Australia
Can I update my existing LYSAGHT NEETASCREEN® fence to LYSAGHT NEETASCREEN® PLUS, complete with lattice and ball-capped posts?
- Yes. An easy to install post conversion kit is available. With this simple post extension you can provide an exciting new look for your existing LYSAGHT NEETASCREEN® fence.
What components do I need to make up one LYSAGHT NEETASCREEN® fence panel?
- You will need 2 LYSAGHT NEETASCREEN® fence posts, 2 LYSAGHT NEETASCREEN® universal rails, 3 fencing infill sheets, 14 self-drilling screws and your choice of post caps.
What do I do if my LYSAGHT® fence gets scratched? Will scratches lead to corrosion?
- It is best not to touch up minor damage, such as scratches, with paint. Minor scratches will not affect the performance of your fence because the galvanised and aluminium/zinc coatings effectively protect any cut edges or scratches from corrosion.
Can I use COLORBOND® steel fencing around my pool?
- You should check with your local council for regulations on fences around pool areas. Particular care needs to be taken if COLORBOND® steel is to be installed within the 'splash zone'. Both salt and chlorine may have a corrosive effect on the COLORBOND® steel finish and as such, may negate a warranty claim.
  For more information Download Corrosion Technical Bulletin CTB 21 - Special Service Environments: Enclosed Swimming Pool Buildings (230 KB)
Can I use LYSAGHT® fencing in a saltwater environment near the ocean?
- COLORBOND® steel fences should not be installed within 1 kilometre of marine, severe industrial or other corrosive environments.
Do LYSAGHT® fences meet the relevant Australian standards?
- Yes. We have fully tested and evaluated our fence systems both in our NATA registered laboratory and using the latest computer modelling software. We can certify that they meet all relevant Australian Standards, including AS1538-1988 (Cold Formed Structures) & AS1170.2 (Wind Loading Code).
How do I maintain my fence made from COLORBOND® steel to ensure long life?
- Your fence is very easy to maintain. Here's a few tips to make sure it keeps looking great.
  - Wipe or hose it down regularly – at least once every six months or more if you live in a coastal area (water restrictions permitting). Pay particular attention to cleaning dirt or debris from under the top rail where rain doesn’t naturally wash.
  - Remove cobwebs using a soft broom. This will deal with any spiders.
  - Don’t let soil, dirt and garden debris build up at the base of the fence or next to the posts and rails. This will retain water and can lead to corrosion.
  - Be careful not to spray the fence with garden chemical sprays or fertilisers as these can damage the surface. If this happens, wash the fence down with water immediately.
  - Don’t use your fence as a retaining wall. It isn’t designed for this purpose.
