LYSAGHT® QUAD Gutter

Product Description and Features

The LYSAGHT® range of Quad (or ‘D’) gutters offers you great choices when it comes to draining your rainwater. This traditional design looks just as good on new homes or providing a 'perfect match' to existing gutters. It's certainly our most popular replacement gutter.

Choices vary from state to state, with a range of widths that's appropriate for the water carrying capacity in your area.

Some profile dimensions may vary slightly from state to state.

• Designed to be compatible with NOVALINE® Fascia system for quick, easy installation
• Designed to complement classic Australian building styles
• Made from long lengths of high tensile ZINCALUME® or COLORBOND® steel, so they are strong and made to last
• Available in a range of COLORBOND® steel colours to match or contrast your roof so no painting is required
• Compatible with both steel and tile roofs
• Light, so fixing is easy
• In some states QUAD® gutters are available with optional slotting to allow overflowing during heavy rainfall
• Available with complete range of accessories

Common Uses of this product

Gutter system for steel and tile roofs. More suited in domestic applications

Warnings

• It is important gutters slope towards the outlets (a minimum gutter fall of 1 in 500 is recommended). Without this slope, 'ponding' may occur, reducing the life of your gutter
• When installing gutters, remove any metal particles or debris at the end of the day to prevent staining or corrosion
• Lead and copper are not compatible with ZINCALUME® steel or COLORBOND® steel
• Do not install galvanised gutters with a ZINCALUME® steel or COLORBOND® prepainted steel roof. Galvanised gutters are only suitable with galvanised steel roof
• The protective plastic film should be stripped off immediately on installation
• Read full details on Guidelines for using COLORBOND® steel & ZINCALUME® steel.

Product Details

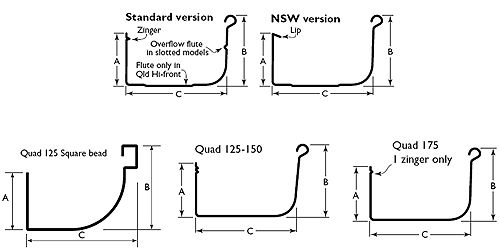

Schematic

Hi-Front

Lo-Front

QUAD 115 is a traditional gutter, and is compatible with LYSAGHT NOVALINE® Fascia.

QUAD 115 Hi-front gutter better obscures the end of low-to-medium height roofing profiles from view

In some states, this profile is available with optional slotting to allow overflow during heavy rainfall.

In South Australia, QUAD is known as D Gutter.

QUAD 125 is the gutter normally supplied to match old installations, and is compatible with LYSAGHT NOVALINE® Fascia.

The larger sizes of QUAD available in Queensland and WA offer increased water carrying capacity.

Gutter Style	Availability	Dimensions			Lengths	Comments
		A	B	C
Quad 115 Hi-front	Qld, SA, NSW, Vic, Tas.	62	90	115	Custom Cut to 8000	Available slotted in SA Fluted & slotted in Qld Known as QUAD in Vic
Quad 115 Lo-front	NSW	65	70	115	Custom Cut to 8000
D125	SA	70	80	125	1800 & 2400
Quad 150	Qld, SA	75	74	150	Custom Cut to 8000	Available in ZINCALUME® steel only in SA
Quad 175	Qld, SA	103	96	175	Custom Cut to 8000
Quad 125 (Round Bead)	WA	70	80	125	2400	GALVABOND® steel only
Quad 150	WA	70	80	150	2400
Quad 125 (Square Bead)	WA	65	95	125	Custom Cut to 8000

All dimensions are nominal, and may vary slightly from state to state.

All QUAD gutters are backed by BlueScope Lysaght's 150 years of experience and our standard rainwater product warranty applies if the gutter is maintained according to our recommendations

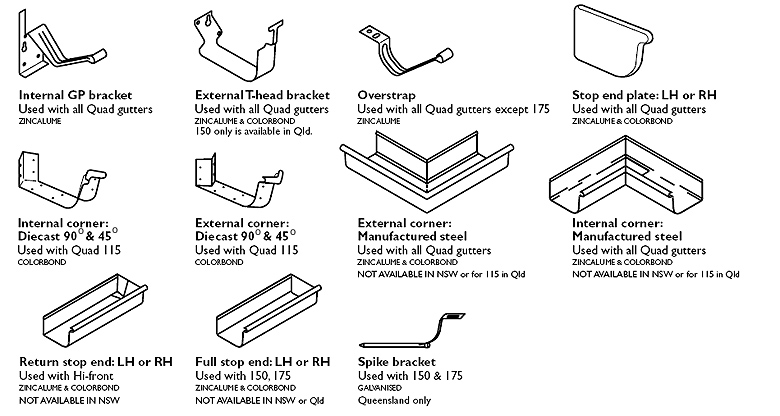

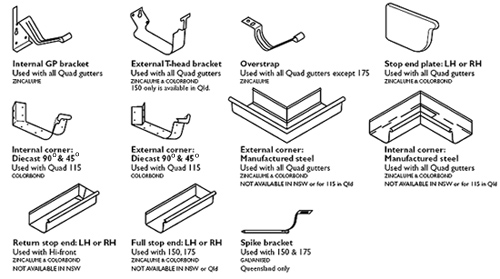

LYSAGHT® QUAD Gutter Accessories



Colour Range

LYSAGHT® products are normally available in the standard range of COLORBOND® steel colours. View the standard colour range for:

COLORBOND® steel or
COLORBOND® Ultra and COLORBOND® Stainless steel or
Colour Chart for COLORBOND® Metallic steel

Please check with your local supplier regarding specific colour availability for individual products.

Roof Drainage Capacity

Cross Sectional Area for LYSAGHT® QUAD Gutters are as follows:

Cross Section	State	Effective Areas mm² (nominal)
QUAD 115 Hi-Front	NSW, Qld, SA, Vic, Tas	Ae = 5809
QUAD 115 Lo-Front	NSW only	Ae = 6165
QUAD 125 (D Gutter)	SA, WA	Ae = 7889
QUAD 125 (Square Bead)	WA only	Ae = 5330
QUAD 150 (D Gutter)	Qld, SA	Ae = 8912
QUAD 175 (D Gutter)	Qld, SA	Ae = 14672

View information on Design of Drainage and Gutter Fall: Download Using LYSAGHT® Roofing & Walling - Chapter 6 Roof Drainage (407 KB)

Fall
Install gutters with a generous fall to avoid ponding (which reduces gutter life), but the fall should not be so steep as the be obvious to the casual observer. Fall on house guttering is often about 1:250 (12mm in 3000mm), though a steeper fall of 30:3000 should give the gutter a longer life.

Downpipe Design
The downpipe size and spacing should be determined in accordance with AS/NZ3500.3.2:1998 National plumbing and drainage: Part 3.2: Stormwater drainage - Acceptable solutions.

Adverse Conditions
If these products are to be used in marine, severe industrial, or unusually corrosive environments, ask for advice from our information line.

Metal & Timber Compatibility
Lead, copper, bare steel and green or some chemically treated timber are not compatible with this product; thus don’t allow any contact of the product with those materials, nor discharge of rainwater from them onto the product. If there are doubts about the compatibility of other products being used, ask for advice from our information line.

Sealed Joints
For sealed joints use screws or rivets and neutral cure silicone sealant branded as suitable for use with galvanised or COLORBOND® steel and ZINCALUME® steel.

Maintenance
Areas not cleaned by natural rainfall should be washed down every six months.

Clean Up
Remove all plastic cover strips from product and dispose of correctly. Sweep all metallic swarf and other debris from roof areas and gutters at the end of each day and at the completion of the installation. Failure to do so can lead to surface staining when the metal particles rust.
