Product Description and Features
LYSAGHT ROOFTRAK® is a safe, stable, slip resistant walkway system for incidental access to roof-mounted equipment and services. It is laid on top of steel roofing. Because the brackets have plenty of mounting holes, it can be laid on various roof cladding profiles. This product is not available in Victoria.
- Can be laid parallel or 90 degrees to the ribs of roofing sheets
- Simple to install
- Corrosion resistant
- Flexible in layout
- Light for easy handling
- Anti-skid, self draining surface
Warnings
- If this product is to be used in marine, severe industrial, or corrosive environments, Contact Us for advice.
Product Details

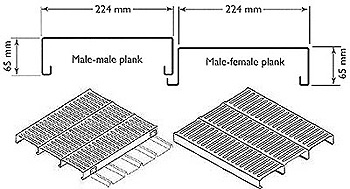

Schematic
Tolerances
Stock lengths: 3018mm and 6075mm; +0mm, -6mm
Depth: +1mm, -1mm
Width: +0mm, -2mm
Specification
The planks of ROOFTRAK® are made from galvanised BlueScope Lysaght ZINCFORM® steel conforming to AS1397-2001, grade G300, Z450 (300MPa minimum yield stress, 450g/m² minimum coating mass), with a base metal thickness of 1.2 and 2.0mm.
Application
LYSAGHT ROOFTRAK® may be used in cyclonic and non-cyclonic areas. For use in cyclonic areas you must install in accordance with this publication, and the roof cladding must be fixed in accordance with our Cyclonic area design manual for steel roofing and walling.
Australian Standard 1657-1992 allows a maximum slope of 20 degrees along cleated or grated walkways. For ROOFTRAK® installed at 90 degrees to the ribs, the side slope (pitch of roof) should not exceed 5 degrees.
You must verify that the roof supporting LYSAGHT ROOFTRAK® has sufficient capacity to withstand all the additional loads.
If you want to use LYSAGHT ROOFTRAK® 450, check that your regulatory authority allows this width because it is narrower than the minimum provided for in AS 1657-1992.
Configurations
ROOFTRAK® is supplied in kits that include components and fixings. The basic ROOFTRAK® "plank" is 224mm wide. The ROOFTRAK® 450 system uses two planks (total 450mm wide); ROOFTRAK® 675 uses three planks (total 675mm wide).
Alternative Claddings
LYSAGHT ROOFTRAK® can be used with a range of claddings. When used with LYSAGHT KLIP-LOK 700 HI-STRENGTH® and oriented in the same direction as the cladding, an additional support plate must be included.
Components Supplied in Kits
Kit Name |
Kit Code |
M/F Planks |
M/M Planks |
Support bracket |
Screws (bag) |
Rivets (bag) |
L bracket |
End Plates |
|---|---|---|---|---|---|---|---|---|
| ROOFTRAK® 675 | ||||||||
| 6 metre straight run | RTK675I6073 | 2 | 1 | 5 | 1 | 1 | ||
| 3 metre straight run | RTK675I3018 | 2 | 1 | 3 | 1 | 1 | ||
| L-connection | RTK675LC | 1 | 1 | 3 | ||||
| T-connection | RTK675TC | 1 | 2 | 3 | ||||
| X-connection | RTK675XC | 1 | 4 | |||||
| Start/finish end plate | RTK675SFEP | 6 | ||||||
| 675 support bracket | RTB75SB | 1 | ||||||
| L-bracket | RTHTEPB | 1 | ||||||
| End Plate | RTBP | 1 | ||||||
| Universal Support Plate | RTUSP | 1 |
||||||
| ROOFTRAK® 450 | ||||||||
| 6 metre straight run | RTK45075I6073 | 1 | 1 | 5 | 1 | 1 | ||
| 3 metre straight run | RTK450I3018 | 1 | 1 | 3 | 1 | 1 | ||
| L-connection | RTK450LC | 1 | 1 | 2 | ||||
| T-connection | RTK450TC | 1 | 2 | 2 | ||||
| X-connection | RTK450XC | 1 | 4 | |||||
| Start/finish end plate | RTK450SFEP | 4 | ||||||
| 450 support bracket | RT450SB | 1 | ||||||
| L-bracket | RTHTEPB | 1 | ||||||
| End plate | RTBP | 1 | ||||||
| Universal Support Plate | RTUSP | 1 |
||||||
6 metre planks are 6073mm long.
3 metre planks are 3018mm long.
Bags of screws and rivets contain 20 items.
