LYSAGHT SMARTASCREEN® PLUS Fencing

LYSAGHT SMARTASCREEN® PLUS

Product Description and Features

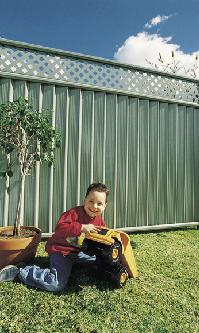

LYSAGHT SMARTASCREEN PLUS® is the latest addition to the LYSAGHT® range. SMARTASCREEN® PLUS keeps neighbours happy with its stylish appearance on both sides. The innovative panel fencing made of COLORBOND® steel offers clean lines with a unique subtle textured finish. The fence is complemented by an attractive steel lattice panel and ball post caps to create a dramatic finish.

The great design is stylish on both sides
Clean attractive lines with subtle textured finish
Attractive lattice panel along the top of the fence
Available in a range of COLORBOND® steel colours
Complete fencing warranty for up to 10 years
Low maintenance
Provides security and privacy
Will stand winds up to 216km/h

Common Uses of this product

Boundary fences, side fences, partitions, screens, enclosures

Warnings

Should not be used within 1 km of salt marine locations, severe industrial or unusually corrosive environments
Check local council regulations for use in pool areas
Should not be used in the pool splash zone
Garden chemicals should not come in contact with fencing
Bottom rail should be kept clear of debris
Read full details on Guidelines for using COLORBOND® steel & ZINCALUME® steel.

Product Details

Schematic

Infill sheet profile

Colour Range

LYSAGHT® fences are normally available in the standard range of COLORBOND® steel colours. See the Colour Chart COLORBOND® steel for Fencing.

Please check with your local supplier regarding specific colour availability for individual products.

Size Availability

The nominal heights of fences are 1500, 1800 and 2100mm from top rail to bottom of bottom rail. The bottom rail should be nominally 50mm above ground level.

Standard panel widths are 2350mm

Warranty

10 year warranty if installed to specifications.

FAQs

Can I get a warranty on a LYSAGHT® fence?
- Yes. We proudly offer a written ten year warranty on our fences, providing they are installed and maintained in accordance with our specifications.
Can LYSAGHT® fencing be used as a retaining wall?
- No. LYSAGHT® fencing has not been designed or tested for use in this application. It is highly likely the soil will cause corrosion of the COLORBOND® steel.
I've heard that COLORBOND® steel should not be immersed in concrete. How will this affect my fence posts?
- Most fences feature galvanised steel posts and COLORBOND® steel infill sheets. Immersing the galvanised steel posts in concrete does not cause any corrosion problems but you should not allow the concrete to contact the rails or infill sheets of the fence. Check with your fencing supplier.
Will the LYSAGHT SMARTASCREEN® panels fit in the LYSAGHT NEETASCREEN® posts and rails?
- Yes, the LYSAGHT SMARTASCREEN® fencing system has been designed to fit into the existing post and rail system.
What components do I need to assemble one LYSAGHT SMARTASCREEN® PLUS fence panel?
- You will need 2 LYSAGHT SMARTASCREEN® posts, 3 LYSAGHT SMARTASCREEN® universal rails, 3 LYSAGHT SMARTASCREEN® infill sheets, 1 lattice panel, 2 post infill strips, 26 self drilling fasteners and your choice of fence caps.
What do I do if my LYSAGHT® fence gets scratched? Will scratches lead to corrosion?
- It is best not to touch up minor damage, such as scratches, with paint. Minor scratches will not affect the performance of your fence because the galvanised and aluminium/zinc coatings effectively protect any cut edges or scratches from corrosion.
Can I use COLORBOND® steel fencing around my pool?
- You should check with your local council for regulations on fences around pool areas. Particular care needs to be taken if COLORBOND® steel is to be installed within the 'splash zone'. Both salt and chlorine may have a corrosive effect on the COLORBOND® steel finish and as such, may negate a warranty claim.
  For more information Download Corrosion Technical Bulletin CTB 21 - Special Service Environments: Enclosed Swimming Pool Buildings (230 KB)
Can I use LYSAGHT® fencing in a saltwater environment near the ocean?
- COLORBOND® steel fences should not be installed within 1 kilometre of marine, severe industrial or other corrosive environments.
What are the standard heights for LYSAGHT SMARTASCREEN® fencing?
- The standard heights are 1200mm, 1500mm, 1800mm and 2100mm.
Do LYSAGHT® fences meet the relevant Australian standards?
- Yes. We have fully tested and evaluated our fence systems both in our NATA registered laboratory and using the latest computer modelling software. We can certify that they meet all relevant Australian Standards, including AS1538-1988 (Cold Formed Structures) & AS1170.2 (Wind Loading Code).
How do I maintain my fence made from COLORBOND® steel to ensure long life?
- Your fence is very easy to maintain. Here's a few tips to make sure it keeps looking great.
  - Wipe or hose it down regularly – at least once every six months or more if you live in a coastal area (water restrictions permitting). Pay particular attention to cleaning dirt or debris from under the top rail where rain doesn’t naturally wash.
  - Remove cobwebs using a soft broom. This will deal with any spiders.
  - Don’t let soil, dirt and garden debris build up at the base of the fence or next to the posts and rails. This will retain water and can lead to corrosion.
  - Be careful not to spray the fence with garden chemical sprays or fertilisers as these can damage the surface. If this happens, wash the fence down with water immediately.
  - Don’t use your fence as a retaining wall. It isn’t designed for this purpose.
