LYSAGHT SPANRIB® (Queensland Only)

Product Description and Features

LYSAGHT SPANRIB® cladding provides the benefits of long spanning, pierced-fix cladding, with excellent rainwater carrying capacity.  It is available in Queensland only.

It has been designed for commercial and industrial applications where long span and fast installation are major requirements.

• Long lengths and a special anti-capillary groove in the side lap allow use on roof pitches as low as 1 degree for 0.48 mm BMT
• 820mm wide
• Can be used for both roofing and walling applications
• Each sheet only requires three fasteners per support
• Long lengths allow one sheet from ridge to gutter without end laps

Common Uses of this product

Roofing and walling in industrial and commercial applications

Warnings

• Available in Queensland only
• Minimum recommended roof pitch is 1 degree
• Walk only in pans and close or over the supports
• Ensure selection of suitable material for environmental conditions for maximum durability
• Lead and copper are not compatible with ZINCALUME® steel or COLORBOND® steel
• Read full details on Guidelines for using COLORBOND® steel & ZINCALUME® steel.

Product Details

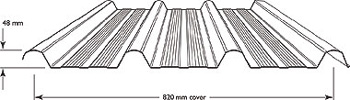

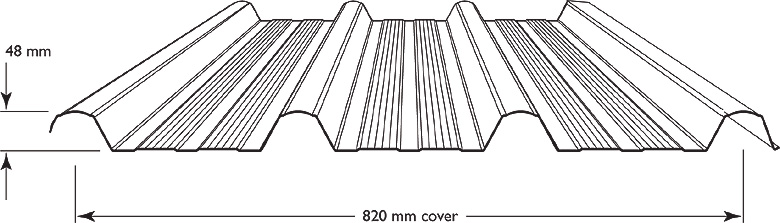

Schematic

Tolerances

Length: +0mm, -15mm
Cover Width: +4mm, -4mm

Material Specification

• ZINCALUME® steel made from zinc-aluminium alloy coated steel complying with AS1397-2001, G550 (550MPa minimum yield stress), AZ150 (150g/m² minimum coating mass)
• COLORBOND® prepainted steel complying with AS/NZS 2728:Type 4, is made from zinc-aluminium alloy coated steel complying with AS1397-2001, G550 (550MPa minimum yield stress), AZ150 (150g/m² minimum coating mass) or AZ200 (200g/m² minimum coating mass), or
• COLORBOND® prepainted steel complying with AS/NZS 2728:Type 6, is made from stainless steel complying with JIS G 4305, Grade 430 stainless steel, 430SS550. Subject to enquiry, or
• The base metal thickness is 0.42mm or 0.48mm

Spanning Tables

The maximum recommended support spacings are based on testing in accordance with AS 1562.1 - 1992, AS 4040.0 - 1992 and AS 4040.1 - 1992.

Roof spans consider both resistance to wind pressure and light roof traffic (traffic arising from incidental maintenance).

Wall spans consider resistance to wind and pressure only.

Maximum Recommended Support Spacings (mm)
Type of Span	Thickness (mm) BMT
	0.42	0.48
Roofs Single Span End Span Internal Span Unstiffened Eaves Overhang Stiffened Eaves Overhang Walls Single Span End Span Internal Span Overhang	2100 2300 2800 150 300 1900 3300 3600 150	2500 2550 3050 200 350 2700 3600 3600 200

• For roofs: the data are based on foot-traffic loading.
• For walls: the data are based on pressures (see wind pressures table).
• Table data are based on supports of 1mm BMT.

The pressure considered is based on buildings up to 10m high in Region B, Terrain Category 3, M₂=0.85, M_i=1.0, M_t=1.0 with the following assumptions made:

Roofs:
C_pi=+0.20, C_pe=-0.90, K_l=2.0 for single and end spans, K_l=1.5 for internal spans.

Walls:
C_pi=+0.20, C_pe=-0.65, K_l=2.0 for single and end spans, K_l=1.5 for internal spans.

These spacings may vary by serviceability and strength limit states for particular projects.

Capacity & Load Tables

LYSAGHT SPANRIB® offers the full benefits of the latest methods for modelling wind pressures. The wind pressure capacity table is determined by full scale tests conducted at BlueScope Lysaght's NATA Registered Testing Laboratory, using the direct pressure-testing rig.

Testing was conducted in accordance with AS 1562.1 - 1992, Design and Installation of Sheet Roof and Wall Cladding and AS 4040.2 - 1992, Resistance to wind pressures for non-cyclonic regions.**

The pressure capacities for serviceability are based on a deflection limit of (span/120) + (maximum fastener pitch/30).

The pressure capacities for strength have been determined by testing the cladding to failure (ultimate capacity). These pressures are applicable when the cladding is fixed to a minimum of 1.0mm, G550 steel. For material less than 1.0mm thick, Contact Us for advice.

** More information on the relevant Standards can be found at the Standards Australia Website.

SPANRIB® Limit State Wind Pressure Capacities (kPa)
Base Metal Thickness (mm)	Type of Span	Limit State	Span (mm)
			900	1200	1500	1800	2100
0.42	Single	Serviceability	2.03	1.60	1.33	1.10	0.89
		Strength*	6.00	3.30	2.35	1.75	1.35
	End	Serviceability	1.99	1.85	1.71	1.56	1.40
		Strength*	5.00	4.10	3.35	2.75	2.30
	Internal	Serviceability	1.60	1.80	1.86	1.81	1.67
		Strength*	5.45	4.30	3.45	2.95	2.70
0.48	Single	Serviceability	2.63	2.23	1.85	1.51	1.21
		Strength*	7.35	6.55	5.70	4.95	4.15
	End	Serviceability	2.95	2.46	2.04	1.73	1.52
		Strength*	6.00	5.15	3.95	3.25	2.90
	Internal	Serviceability	2.20	2.08	1.95	1.82	1.66
		Strength*	6.35	5.40	4.45	3.70	3.10

SPANRIB® Limit State Wind Pressure Capacities (kPa)
Base Metal Thickness (mm)	Type of Span	Limit State	Span (mm)
			2400	2700	3000	3300	3600	3900
0.42	Single	Serviceability	0.70	0.50
		Strength*	1.05	0.75
	End	Serviceability	1.24	1.07	0.90	0.73	0.56
		Strength*	1.95	1.65	1.35	1.15	0.95
	Internal	Serviceability	1.50	1.32	1.15	0.98	0.82	0.65
		Strength*	2.50	2.30	2.15	1.95	1.80	1.60
0.48	Single	Serviceability	0.96	0.74	0.54
		Strength*	3.35	2.60	1.85
	End	Serviceability	1.35	1.18	1.01	0.84	0.68
		Strength*	2.60	2.40	2.20	2.05	1.95
	Internal	Serviceability	1.50	1.34	1.20	1.07	0.95
		Strength*	2.65	2.35	2.20	2.10	2.05

* A capacity reduction factor of ø = 0.9 has been applied to strength capacities.
Supports must be not less than 1mm BMT.

The information in this brochure is suitable for use only in non-cyclonic conditions. BlueScope Lysaght has extensive cyclonic data to support the use of SPANRIB® in various cyclonic applications. Please Contact Us for advice when designing for cyclonic conditions.

Fastening Details

For non cyclonic conditions

Fasteners without insulation
	Fixing to steel up to 0.75mm BMT	Fixing to steel 0.75 to 3mm BMT
Crest Fixed	Self drilling, self tapping screws for wood with hex. washer head shank guard and EPDM seal 12-11 x 65	Self drilling,self tapping screws with hex. washer head with shank guard and EPDM seal 12-11 x 65

Roof Drainage Capacity

Penetrations will alter the flow of water on a roof. For assistance in design of roofs with penetrations please Contact Us.

Maximum roof lengths for drainage measured from ridge to gutter (m)
Peak rainfall intensity mm/hr	Roof slope
	1° *	2°	3°	5°	7.5°	10°
100	329	410	480	598	713	820
150	220	273	320	399	476	547
200	165	205	240	299	357	410
250	132	164	192	239	285	328
300	110	137	160	199	238	273
400	82	102	120	150	178	205
500	66	82	96	120	143	164

* for 0.48mm BMT only.
